Separator

A Separator is a thin line between two parts of a panel. It goes across a column, or down a row. Text or other elements in a separator show in a gap in the line: -- Sound ----------.

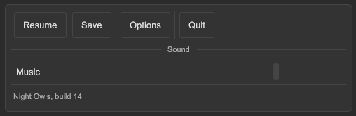

A vertical separator between two groups of buttons, a horizontal separator with the label Sound, and a plain horizontal separator above a note

How to part a column and a row:

<ui:Label text="Account" />
<tb:Separator />
<ui:Label text="Privacy" />

<ui:VisualElement style="flex-direction: row;">
    <ui:Button text="Cut" />
    <tb:Separator vertical="true" />
    <ui:Button text="Paste" />
</ui:VisualElement>

toolbar.Add(new Separator { Vertical = true });

How to put a title, an icon or any element in the line:

<tb:Separator text="Sound" />
<tb:Separator text="Chapter 2" align="Center" />
<tb:Separator align="End">
    <ui:Button text="Show more" />
</tb:Separator>

panel.Add(new Separator { Text = "Sound" });

Member	Description
`Vertical` (`vertical`)	Draws the line down a row. False (the default) draws the line across a column.
`Text` (`text`)	A label in a gap in the line. Empty (the default) shows no label.
`Align` (`align`)	Where the text and the child elements sit: `Start` (the default) after a short piece of line, `Center`, or `End` before a short piece of line.
Child elements	Go into the gap in the line, after the text. A separator with no text and no child is a plain line.

The line has the color and the width of the borders of the theme, like the separator of a menu.
The line does not take pointer events.
A vertical line takes the height of its row.

Tips:

The classes work on any element. Use class="tb-separator" on a VisualElement when you do not want the tb namespace in a document.
Use a vertical separator only in a parent with flex-direction: row.
For more room around the line, set the margin of the element.

Styling

Class	Element
`tb-separator`	The line: `--tb-border-width` high, in `--tb-color-border`, with a `--tb-spacing-xs` margin above and under it.
`tb-separator--vertical`	Set for a vertical line: `--tb-border-width` wide, as high as the row, with the margin at the left and the right.
`tb-separator--with-content`	Set when the separator has text or child elements. The separator is then a row of a line, the content and a line, and has no background.
`tb-separator--start`, `--center`, `--end`	The value of `Align`.
`tb-separator__line`, `__line--before`, `__line--after`	The two pieces of line around the content. The short piece is `--tb-spacing-lg` long.
`tb-separator__content`	The gap in the line, with a `--tb-spacing-md` margin on each side.
`tb-separator__text`	The label of `Text`, small and in the muted text color.

.tb-separator { margin-top: 12px; margin-bottom: 12px; background-color: var(--tb-color-accent); }
.tb-separator__line { background-color: var(--tb-color-accent); }
